1390 Mix Laser Cutting and Engraving Machine
- #1.Automatic following cutting head.
- #2.Output 300W~600W co2 laser power.
- #3.High accuracy ball screw transmission system.
Get Our Best Quotes
Please Fill in the Form Below and Our Engineers Will Respond within 24 Hours
1390 Mix Laser Cutting and Engraving Machine
The hybrid laser cutting machine is not just a simple mixture of a CO2 laser and an engraver, but a completely new kind of machine which can process non-metallic materials and thin metal plates at the same time. The hybrid laser cutting machine is suitable for processing a variety of materials like wood, acrylic, leather, sponge and so on. It also applies to some metal materials with a thickness ≤ 3mm such as stainless steel plate, carbon steel plate, galvanized plate and titanium plate. Our newly developed 1390 mix laser cutting and engraving machine is equipped with high-power CO2 laser tubes of 150w/300w/500w/600w to meet different design requirements in different industries.
Machine Feature
The machine is designed with a three-axis system, which is stable and accurate. The laser cutting head can be automatically adjusted to the best focus by following the ball screw transmission system. The fully automatic feeding system ensures high productivity and easy operation. The combined design of this small laser-cutting machine makes it easy to operate and maintain, which greatly reduces the labor intensity of workers.

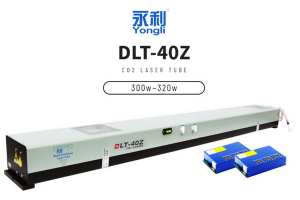

1. Laser power It is available with 150w,300w, and 600w co2 laser tubes, and the output laser power is strong and stable, the processing accuracy is high, the cutting effect is perfect, and there is no after-sales service.

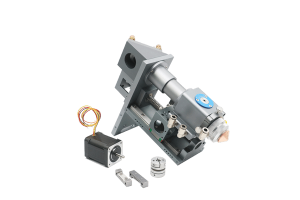

2. Auto-focus following cutting head Following the type of cutting system automatically selects the optimum focus, hereby ensuring the best focusing effect and cutting effect, to avoid cut inconsistencies due to uneven material and different thicknesses.

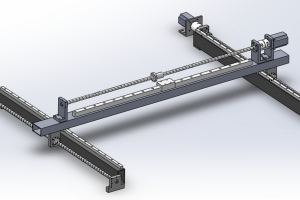

3. Ball screw transmission system It adopts a Japan YASKAWA servo motor for the transmission system， high cutting precision， fast cutting speed， and perfect cutting effect.
1390 mix laser cutting and engraving machine solution
Generally speaking, conventional CO2 laser cutting machines are mainly used for processing non-metallic materials such as acrylic, wood, fabric, leather, foam, sponge, rubber, cardboard, etc.
However, the relatively high cost and low efficiency of these machines have led some manufacturers to develop high-speed laser engraving machines that can cut and engrave at the same time.
The following are some of the pain points of these machines:
- High temperature environment
- Low efficiency
- High energy consumption
The mixed laser cutter machine is suitable for cutting and cutting various non-metallic and metal sheets such as wood, MDF, acrylic, plywood, stainless steel, carbon steel, galvanized steel,etc. It is widely used in signs, models and advertising applications.
Fabric, leather, nylon, textile, carbon fiber, fiberglass, Oxford cloth, blanket, canvas, imitation leather, leather, cotton and linen material, bags, sofa fabric, and carpet fabric
1390 Mix Laser Cutting and Engraving Machine Technical Parameter
| Model | DEK-1390J | DEK-1325J | |
|---|---|---|---|
| Work Area (mm) | 1300mm*900mm | 1300mm*2500mm | |
| Laser Generator | Co2 glass sealed laser tube | ||
| Laser Power | 150W/300W/500W/600W | ||
| Transmission | Belt / Ball Screw with servo motor | Belt / Gear and rack with servo motor | |
| Cutting Head | Auto focus following head | ||
| Material | Wood : ≤30mm / Acrylic :≤ 30mm / Foam : ≤100mm | ||
| Carbon steel : ≤4mm / Stainl steel : ≤3mm | |||
| Control System | Ruida laser controller | ||
| Cutting Speed | 0-48000mm/min | ||
| Resolution | <0.025mm | ||
| Power Supply | AC110V/220V± 10%,50-60Hz | ||
| Software supported | PLT, AI,JPGE, PCS, TGA, DST, DXP, DXF, DWG, CDR | ||
| Design Software | CORELDRAW, PHOTOSHOP, AUTOCAD,SOLIDWORKS | ||
| Cooling Type | CW-6000 dual temperature dual control water chiller | ||
| Accessories | Water Chiller, Air Pump, Exhaust Blower |
1390 Mix Laser Cutting and Engraving Machine Components
Application Scenarios
The 1390 Mix Laser Cutting and Engraving Machine is suitable for cutting and cutting various non-metallic and metal sheets such as wood, MDF, acrylic, plywood, stainless steel, carbon steel, galvanized steel, etc. It is widely used in signs, models and advertising applications. The specific application scenarios are as follows:
